Technique Errors

Receptor Placement Errors

Correctly exposing intraoral receptors includes four basic steps: receptor placement, vertical PID (cone) angulation alignment, horizontal PID (cone) angulation alignment, and central ray centering. Technique errors can occur if any of these steps are completed improperly. Placement errors will be discussed first as they are the most common of all errors.

Inadequate Coverage/Missing Apices

A common receptor placement error is inadequate coverage of the area to be examined radiographically. This typically occurs in molar projections when the patient has difficulty maintaining or tolerating proper receptor placement. Each periapical and bitewing in a complete survey has established placement criteria which describes the structures of interest that should be recorded on each view. Consistent application of these criteria will minimize this error and ensure coverage of all required structures.

Radiograph showing periapical maxillary apices cut off

Figure 11: Periapical – Maxillary Apices Cut Off

Radiograph showing mandibular bitewing with bone margin cut off

Figure 12: Bitewing – Mandibular Bone Margin Cut Off

Missing apices can be caused by a receptor placement error (Figure 11). When using receptor holders, the bite block should be placed on the incisal or occlusal aspect of the teeth to be imaged and not on the opposing teeth. If the bite block is placed on the opposing teeth and the patient is required to bite the receptor into place, a placement error is likely to occur. Placing the receptor more lingual to the teeth where the palate and floor are deeper will make positioning easier and more comfortable for the patient. This is important when placing the receptor for bitewings so that the receptor is not displaced by anatomical structures (Figure 12). Placement of the bite block and receptor in the correct position first and then having the patient slowly bite to maintain the placement is the preferred and most effective approach.

Tilted Occlusal Plane

When the receptor is not placed perpendicular to the occlusal plane, the occlusal plane will appear slanted or diagonal on the recorded image (Figures 13 A and B). When exposing bitewing radiographs, the top edge of the receptor may come in contact with the palatal gingiva or curvature of the palate or the lingual aspect of the mandible. When this occurs, the occlusal plane will appear crooked. The receptor must be placed straight or perpendicular with the occlusal plane or placed farther away from the teeth to avoid this error. For periapicals, always place the bite block in contact with the occlusal or incisal surfaces of the teeth you are imaging rather than on the opposing teeth. Also, this error can occur when the cheek soft tissue is behind the biteblock rather than around it.

Radiograph showing the receptor not placed perpendicular to the occlusal plane for maxillary teeth.

Figure 13A: Tilted Maxillary Occlusal Plane

Radiograph showing the receptor not placed perpendicular to the occlusal plane for mandibular teeth.

Figure 13B: Tilted Mandibular Occlusal Plane

Placement on the opposing teeth or too close to the teeth, or with cheek interference will cause the receptor to displace when it contacts bony anatomy. Preferably, the receptor orientation dot or plate marker should be placed toward the crowns of the teeth for periapical images and toward the mandible for bitewing images to reduce interference with viewing the structures of interest on the recorded image.

Backward Placement

The exposure side of any receptor must be directed toward the x-ray source to produce an acceptable image. Backwards placement is unlikely with rigid digital receptors because of the wire attachment on the non-exposure side of the sensor.

Backward placement of a film in the mouth causes the lead foil inside the packet to face the radiation source instead of the film directly (Figure 14A). The x-ray beam is attenuated by the lead foil before striking the film. This causes the embossed pattern on the foil, a herringbone or diamond effect, to appear on the processed film (Figure 14B).

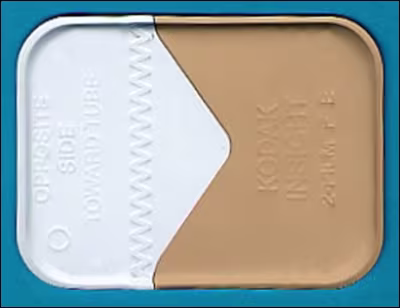

Photo showing the rear side of a film packet.

Figure 14A: Rear Side of Film Packet

backwards film image

Figure 14B: Backwards Film Image

This error also results in a lighter image and reversal of the image. This can lead to confusion about the correct anatomical area recorded when mounting the processed film images. Backwards phosphor plate receptor placement (15A) also produces a low density and reversed image.

Photo showing the rear side of a plate.

Figure 15A: Rear Side of Plate

Photo showing the exposure side of a plate.

Figure 15B: Exposure Side of Plate

Bending

Plate or film bending may occur due to contact with the curvature of the palate or lingual arch and/or mishandling of the receptor. These receptors can be flexed but should never be bent. If the receptor is too large for the area, bending or curving can occur. Select a receptor size that will adequately cover the area without producing excessive discomfort to the patient. Crimping, creasing, or folding a plate or film receptor damages the emulsion and compromises the quality of the image (Figures 16 and 17). Careful handling, use of a smaller receptor, and correct placement will address the problems of bending and other receptor distortions that produce image artifacts.

Rigid digital receptors cannot be bent but as previously indicated phosphor plate receptors can be creased, bent, scratched, or folded. These alterations result in permanent damage of the plate and produce artifacts on the current and any subsequent image taken with the marred plate.2

film receptor creasing

Figure 16: Film Receptor Creasing

example showing plate receptor scratches

Figure 17: Plate Receptor Scratches

Damaged plates should be replaced when the artifacts interfere with the production of diagnostic images. Tissue cushions are better alternatives than bending or creasing a plate or film receptor.

Vertical Alignment Errors

Vertical angulation controls the length of the recorded image. When using the paralleling technique and receptor holders, the vertical angulation is dictated by the holding device to direct the x-ray beam perpendicular to both the teeth and receptor. Therefore, it is important that the clinician place the receptor parallel to the teeth to ensure proper vertical angulation. In contrast, when using the bisecting angle technique, the beam is perpendicular to the plane that bisects or divides the angle formed by the teeth and the receptor. Vertical alignment errors often occur with the bisecting angle technique and can result in elongation or foreshortening of the teeth. Other errors that can occur which cause the teeth to appear elongated or foreshortened include:

  • receptor position

  • patient position

It is important to determine the cause of the error in order to correct it.

Elongation

Elongation or lengthening of the recorded teeth and surrounding structures results from underangulation of the x-ray beam (not enough vertical angle) as seen in Figure 18. When elongation occurs using the paralleling technique, the angulation of the x-ray beam is less than the long axis plane of the teeth (Figure 19B). To correct this error the clinician must increase the vertical angulation. In other words, for the maxillary arch, the positive vertical angulation must be increased (PID pointing down); for the mandibular arch, the negative vertical angulation must be increased (PID pointing up) as demonstrated in Figure 20.

This error can also occur when using the bisecting angle technique. Often the error is caused by the x-ray beam being perpendicular to the long axis of the teeth, rather than bisecting the angle between the teeth and the receptor (Figure 19A).

radiographic image showing an example of elongation

Figure 18: Elongation

examples of receptor angulation and beam under-angulation

Figure 19A: Receptor Angular
Figure 19B: X-ray Beam Under-Angulated

ce559 - Figure 19

Figure 20: Vertical Angulation

Foreshortening

Foreshortening or shortening of the recorded teeth and the surrounding structures can also result from improper vertical angulation (Figure 21). Foreshortening is the result of overangulation of the x-ray beam (too much vertical angle) as depicted in Figure 22B. When using the paralleling technique, foreshortening can occur when the angulation of the x-ray beam is greater than the long axes plane of the teeth (Figure 22B). To correct foreshortening when using the paralleling technique, the operator should decrease the positive vertical angulation for maxillary projections and, decrease the negative vertical for mandibular projections. This error can also occur if the receptor is not placed parallel to the long axis of the teeth (Figure 22A).

radiograph of foreshortened image

Figure 21: Image Foreshortening

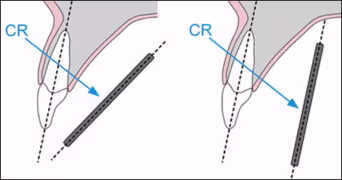

receptor angular and beam under-angulated examples

Figure 22A: Receptor Angular
Figure 22B: X-ray Beam Over-Angulated

Horizontal Alignment Errors

Proper horizontal alignment of the x-ray beam will open interproximal contacts and facilitate a thorough radiographic caries evaluation and assessment of alveolar bone levels, both important components of a thorough clinical and radiographic examination. The x-ray beam should be aimed directly between the contact points of the targeted teeth in order to open the interproximal surfaces (Figure 23). Horizontal alignment errors cause the image to shift anteriorly or posteriorly, resulting in the overlapping of the proximal contacts (Figures 24A and 24B).

Figure 23: Correct Horizontal Angulation Entry

ce559 - Images - Figure 22

Figure 23: Correct Horizontal Angulation Entry

ce559 - Figure 23A

Figure 24A: Overlapped Premolar Bitewing

radiograph of horizontal overlapping

Figure 24B: Overlapped Molar Bitewing

To determine if the horizontal angulation is aligned incorrectly, evaluate the extent of the overlap. The Buccal Object Rule can be used to determine the movement of the buccal and lingual cusps when trying to understand the error. The Buccal Object Rule states: Buccal objects move in the opposite direction compared to the direction of the x-ray tubehead, while lingual objects move in the same direction as the movement of the x-ray tubehead.19 Application of the Buccal Object Rule to determine the cause of interproximal overlapping requires evaluation of the position of the x-ray tubehead and the direction of the overlapping on the bitewing image. For example, if the x-ray head is placed too posterior in position, the buccal cusps will overlap in an anterior direction as demonstrated in the molar bitewing illustration. By way of comparison, if the x-ray head is placed too anterior in position, the buccal cusps will overlap in a posterior direction. To avoid this error, the central ray must pass through the proximal surfaces of the teeth where the contacts need to be open. To aid in the determination of the correct horizontal angle, the clinician can place the end of a cotton-tip applicator into the contact zone. This method will help visualize the direction the x-rays should be directed to open the teeth contacts.

When using receptor holding devices, horizontal errors can occur by improper horizontal alignment of the receptor. These errors can be avoided by placing the receptor in the same horizontal plane as the teeth so that the x-ray beam travels directly through the contact areas. This will position the receptor parallel to the buccal plane of the teeth as well as parallel to the instrument indicator ring.

Beam Centering Errors

The central ray should be aligned over the center of the receptor with the x-ray beam directed perpendicular to the receptor (Figure 25). When this alignment is not observed, a cone-cut occurs. Cone-cuts appear as a clear zone on traditional radiographs after processing, due to the lack of x-ray exposure of the emulsion. When using digital imaging, the cone-cut appears as an opaque or white zone. The shape of the cone-cut depends on the type of collimator used when exposing the receptor.

ce559 - Figure 24

Figure 25: Central Ray Alignment

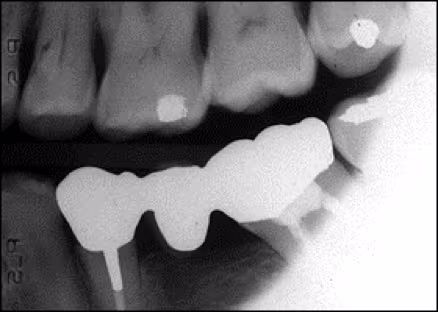

radiograph of round cone cut

Figure 26. Round Cone Cut

radiograph of rectangular cone cut

Figure 27: Rectangular Cone Cut

For example, if a round collimator is used, a curved cone-cut will appear (Figure 26). Squarish or rectangular cone-cuts occur when using a rectangular collimator (Figure 27). To correct a cone-cut error, the beam should be re-centered toward the area of non-exposure. Improper assembly of receptor holding devices can also cause cone-cuts. When assembling these devices, make certain that the entire receptor can be seen when looking through the indicator ring.

The technical errors previously discussed are briefly summarized in Table 2.

Table 2. Technical Error Summary.

ErrorDescriptionCorrection
1. Receptor PlacementInadequate coverage of the Structures radiographed or backwards receptor placement.Follow established placement criteria for each periapical and bitewing. Expose correct receptor surface.
2. Receptor HandlingPhosphor plate or film with bends, creases, folds that produce artifacts or distort the captured image.Handle receptors with care and refrain from bending, creasing or marring the emulsion. Use correct receptor size and receptor cushions to improve comfort.
3. Vertical AngulationShape distortion in the form of image foreshortening or image elongation.Decrease the vertical angle to correct foreshortening. Increase the vertical to correct elongation. Ensure proper vertical placement of the receptor in relation to the teeth.
4. Horizontal AngulationOverlapped or superimposed proximal contacts with image widening.Direct the x-ray beam through the contact points of the teeth such that the open end of the PID is horizontally parallel to the labial or buccal surfaces of the teeth.
5. Cone cutsCurved or squarish blank areas where the x-ray beam was not centered over the receptor. Direct the x-ray beam to the center of the receptor. Ensure proper assembly of receptor-holder.
